Coating is waterproof when dry and walls are warm to the touch
Prevents formation of black mould and other harmful fungi
Reduces the risk of condensation
Takes up to 60% longer for condensation to form on walls
Increases the life of your chosen paint or wall paper finish
Can be applied over existing paint or wall paper, plaster, brick, concrete, metal and plastic
Can be over painted or wall papered over with any finish, without reducing its effectiveness
Suitable for any interior wall – Particularly exterior facing walls, bathrooms and kitchens
Eco-friendly, antibacterial properties
ThermalDry Anti-Condensation Paint (White) Data Sheet
Wykamol CM Brick Plugs are used to apply cavity drain membranes to the walls of both above and below ground applications. CM brick Plugs are of a high quality and can be used in a range of applications and on multiple substrate types. The tailor made Thermoplastic Elastomer seal ensures application of the membrane is water tight.
Wykamol CM Brick Plugs can be used:
To apply cavity drainage membranes such as CM3, CM8 and CM20
On Brick
One Stone
On Concrete
In damp-proofing applications
In waterproofing applications
CM Brick Plugs come both with and without seals.
Plug Seals can also be purchased separately.
Brick Plugs for Membrane Data Sheet

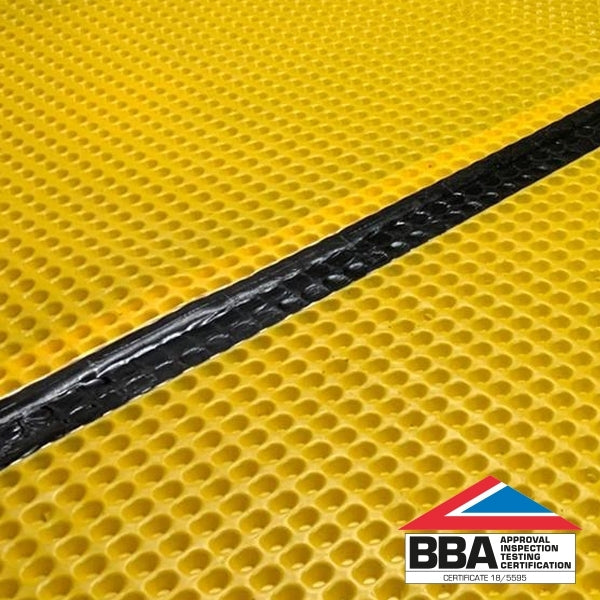

CM20 Hi-Vis Cavity Drain Membrane: Safety, Quality, and Visibility
The CM20 Hi-Vis Cavity Drain Membrane is a high-quality structural waterproofing material designed to meet the specific needs of dark basements and similar environments. With a high-visibility yellow color, it significantly reduces trip hazards and ensures safe, efficient installation. This 20mm studded membrane is suitable for Type C waterproofing, and its superior drainage capacity sets it apart from other membranes in the Wykamol range.
Superior Features
High-grade material with a vibrant yellow color for enhanced visibility in dark basements.
Helps prevent trip hazards by clearly showing joints.
Conforms to a Type C cavity drain membrane system according to BS8102:2009.
Provides a high water void volume of 14 litres/m2.
Quick and easy to install – rolls out conveniently along floors.
Transforms damp or wet conditions into dry, habitable living spaces.
Can be cut down easily using a sharp blade.
Resistant to water, salt, roots, and contaminants.
Causes minimal or no damage to the existing structure.
Tolerates both low and high temperatures.
Available in 2m x 20m and 2m x 10m rolls, with the latter only weighing 20kg.
Typical Uses
The CM20 Hi-Vis Membrane is a Radon barrier approved for a variety of applications including walls, floors, vaults, tunnels, and above or below-ground waterproofing.
Preparation, Application and Finishing
The CM20 Hi-Vis Membrane requires careful substrate preparation, meticulous application, and accurate finishing for optimum results. Full instructions for each of these stages are provided, including recommended procedures for dealing with potential issues such as mould, masonry fungi, and dry rot.
Aftercare and Storage
After installation, the CM20 Hi-Vis Membrane needs only minimal aftercare. It’s crucial to provide adequate ventilation, especially in wet areas like kitchens and bathrooms. Store in an upright position, under cover, and away from high temperatures and open flames.
Safety and Health
RASCOR always advises the use of appropriate Personal Protective Equipment (PPE) during installation, including gloves, hard hats, goggles, high-visibility jackets, and steel-toe boots. No specific hazards are likely with the CM20 Hi-Vis Membrane or ancillaries, but general precautions should be exercised, particularly when working in confined spaces.
The CM20 Hi-Vis Membrane: the highest standard of safety, visibility, and quality for all your waterproofing needs.
CM20 Hi-Vis Membrane Data Sheet

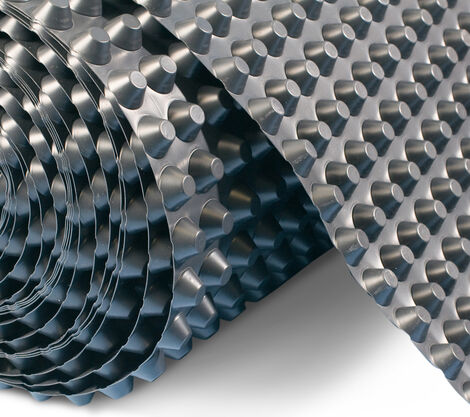

Wykamol CM20 High Capacity Waterproofing Membrane is for use on walls, floors, vaults and tunnels with minimal surface preparation required. Also suitable for external foundation waterproofing and internal above ground waterproofing to provide insulated dry lining where conventional plaster finishes are not suitable.
Wykamol CM20 Waterproofing Membrane is BBA-approved as suitable for type 'C' Cavity Drain Membrane Systems in accordance with BS8102 and now includes our high-vis yellow membrane.
CM20 Waterproof Floor Membrane Data Sheet
• Part of a type C cavity drain membrane system in line with BS8102:2022.
• Gives a high water void volume of 14 litres/m².
• Quick to install - easy to roll out along floors.
• Creates a dry, habitable living space in areas previously suffering from damp or wet conditions.
• Easily cut down using a sharp blade.
• Waterproof, salt inhibiting, and root and contaminant resistant.
• Little or no damage to the existing structure.
• Low and high-temperature tolerance.
• High-grade material.
• Available in rolls of 2m x 20m and 2m x 10m* (*only 20 kg in weight)
• Ideal radon barrier membrane
The Mesh Membrane is an 8 mm water-proofing sheet with 8 mm deep studs at 30 mm centres. The volume of the void is almost 5 litres per square metre. The mesh face allows for the direct application of plaster.
The mesh membrane kit comes in two sizes, 2 m high by 10 m long and 2 m high by 20 m long. The 20 m2 kit includes a 2 m x 10 m roll of membrane ,200 mesh membrane plugs with ready mounted seals and one roll of waterproof tape. The 40 m2 kit includes a 2 m x 20 m roll of membrane, 400 mesh membrane plugs with ready mounted seals and one roll of waterproof tape
Waterproofing Mesh Membrane Kit Data Sheet

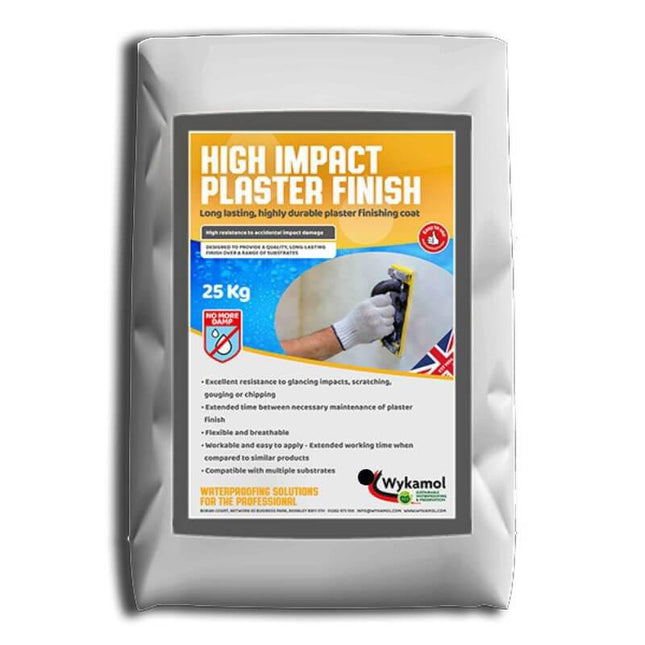

Wykamol High Impact Plaster Finish is highly durable and designed to provide a quality, long-lasting finish over Wykamol’s Renovation Plaster, or a range of other substrates, including existing gypsum plaster, plasterboard lime-based backgrounds & sand cement backgrounds.
High Impact Plaster Finish should be used as part of the Replastering System, after the installation of a damp-proof course. It is also an ideal product to use as part of flood remediation due to its breathability and domestic commercial environments such as hospitals, schools and children’s nurseries which are prone to accidental damage.
Technical Data Sheet
A single-component, fibre-reinforced, polymer-modified cementitious mortar, ideal for specialist waterproofing systems. Highly versatile, it offers high bond strength, excellent protection from moisture, and is factory batched for consistent quality. Part of the HydraDry Tanking System.
Ideal for use with specialist waterproofing systems such as tanking slurry.
Fibre re-inforced to give improved tensile and impact strength.
High bond strength which ensures monolithic performance.
Suitable for horizontal, vertical and overhead applications.
Wide range of applications from a single product.
Economic mortar which generally requires no substrate inter-layer priming.
Dense matrix provides excellent protection from moisture and chlorides.
Factory batched mortar which provides consistant quality.
Wykamol HydraDry Universal Mortar & Fillet Seal Data Sheet
CM8 Cavity Drain Membrane is an 8 mm studded membrane, suitable for Type C waterproofing and delivering a grade 3 environment to BS8102:2009 and NHBC Chapter 5.4. CM8 is available in either 500g or 700g densities. We recommend using the CM8 HD700 when a heavier, denser membrane is deemed necessary by the Wykamol Technical Department. Please always take advice from our technical experts when making product selections.
ADVANTAGES•Creates dry, habitable living space in areas previously suffering from damp-wet conditions.•Waterproof, salt-inhibiting, and root- and contaminate-resistant.•Quick to install—minimal preparation needed to wall surfaces.•Easily cut down using a sharp blade.•No drying out process – redecoration can occur immediately.•Little or no damage to the existing structure.•Low and high temperature tolerance.•Part of a type C cavity drain membrane system in line with BS8102:2009.•Clear for easy application and fixing of wykamol plugs.
Full Cavity Drain CM8 KIT Data Sheet
Advantages of using Wykamol CornerTape• Good adhesion to a wide range of substrates once primed with Technoseal.• Easy and accurate to use with little waste and no mess.• The softer composition makes this product highly conformable.• Remains flexible throughout its service life.• High tack.• Provides a waterproof seal when correctly installed.• Can be used to fix many membrane and perimeter drainage channel applications.• Works in conjunction with Wykamol Cavity Drain Membrane Systems.
Corner Strip Tape for Membrane Data Sheet
